An airspace survey defines property interests that live above the ground rather than on it. When a balcony, canopy, or skybridge reaches past a building’s walls, that space can carry its own rights, elevations, and boundaries. A surveyor maps those three-dimensional limits so owners, designers, and attorneys know exactly where an interest starts and stops. This kind of work turns a fuzzy question about air rights into a drawing anyone can rely on.

Thinking About Property in Three Dimensions

An airspace parcel exists as a volume, not just a flat shape on the ground. The interest gets defined by horizontal limits, vertical elevations, and reference datums working together to box in a specific chunk of space. That framework lets one owner hold the air above a certain height while another owns the ground below, each with a clear line between them. Understanding property this way is the base for everything the survey records.

Most people picture property as a plot you can walk across, so a volume of air takes a mental shift. The survey makes that shift concrete by fixing the top and bottom of the space in real numbers tied to a known datum. Once those plans exist on paper, the abstract idea becomes something a court, a lender, or a title company can actually work with. That precision is what keeps a three-dimensional deal from falling apart over vague descriptions.

Locating Features That Reach Over Other Land

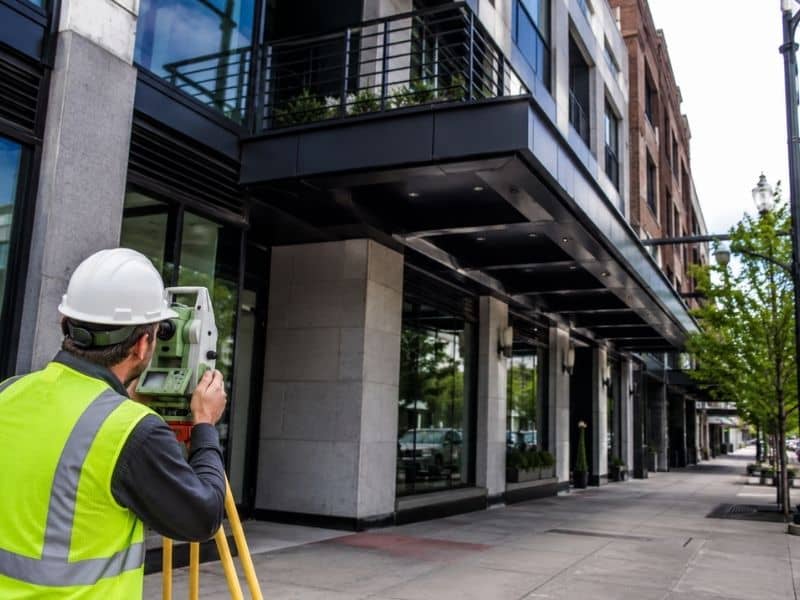

The crew measures the parts of a building that push beyond the main wall line and hang over a street or a neighbor’s parcel:

• Balconies and terraces
• Signs and marquees
• Canopies and awnings
• Cornices and decorative trim
• Skybridges and connecting walkways

When these projections sit accurately on the drawing, an owner sees exactly how far the building reaches and over whose land. That clarity matters most when a projection crosses into space someone else controls, since a few inches can decide whether a feature is allowed or has to come down. The survey records the real reach so no one has to argue from memory or guesswork.

Tying Overhead Features to Recorded Rights

Physical measurements only tell half the story, so the survey connects them to the documents that grant permission. Air-rights agreements, projection easements, encroachment agreements, and condominium declarations all shape what a building may legally hang over the property line. Reading those instruments against the measured projections shows whether each feature actually has the right to exist where it does. A cantilevered sign with no supporting agreement can turn into a costly dispute fast.

Municipal permissions add another layer, since cities often regulate what may extend over a public sidewalk and how high it has to be cleared. The survey ties the physical reach of a canopy to the permit that allows it, so the owner can prove the feature is legitimate. Missing that link leaves a building exposed to an enforcement order that could force an expensive change. Matching the measurement to the paperwork closes that gap before it becomes a problem.

Keeping Vertical References Straight

Accurate elevations hold an airspace survey together, and a single datum mistake can throw the whole thing off. Floor levels, building benchmarks, structural plans, and the project datum all have to agree before the surveyor reports an upper or lower limit. A mismatch between two reference systems can place a boundary feet away from where it belongs, which is disastrous when the whole interest is a thin slice of air.

Vertical errors also compound quickly in three-dimensional work. A datum confusion that would barely register on a flat lot can misplace an entire airspace parcel and every feature tied to it. So the surveyor checks these references against one another carefully and resolves any conflict before reporting a number. That discipline is what lets the reported heights mean exactly what they say.

Preparing Exhibits for Legal and Design Teams

The finished drawings have to communicate a three-dimensional interest to people who read in two dimensions. Plan views, profiles, sections, coordinate tables, and written descriptions each show a different slice of the same volume. Together they let an attorney or an architect understand precisely what the interest covers without filling in blanks on their own. A clear exhibit heads off the kind of misreading that leads straight to a dispute.

These exhibits also become the permanent record for a space that’s hard to picture. Years later, a new owner or a new design team can pick up the drawings and see the interest exactly as it was defined. That lasting clarity is a large part of what the survey delivers.

Frequently Asked Questions

Does every balcony over a sidewalk need an airspace survey?

No. The need depends on ownership, local requirements, recorded rights, and the purpose of the project or transaction. A simple balcony with clear permissions may not require one, while a disputed or complex projection over public space often does.

Can an airspace parcel be sold separately from the ground below it?

In some developments it can, but the legal structure has to be created and reviewed by qualified legal professionals. A survey can define the volume precisely, though the ability to convey it on its own comes from the underlying legal documents, not the drawing.

Why are elevations so important in an air-rights description?

Elevations set the vertical limits of the interest and separate it from the spaces above and below. Without them, the description couldn’t tell one owner’s volume from a neighbor’s, so they form the backbone of any air-rights document.
